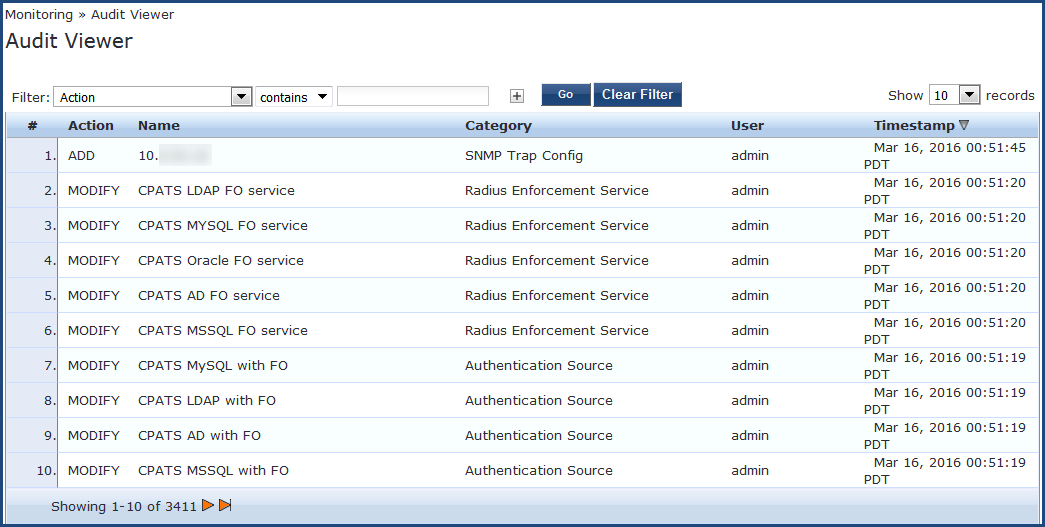

The page provides a dynamic report on actions, device name, category of Policy Manager component, user, and timestamp. To access the Audit Viewer, navigate to > .
To display detailed information about the selected event, click any row in the audit viewer. The page opens (see Figure 2). The content in the Audit Row Details page varies, depending upon type of event you select.
Add EventsTo display additional details that are specific to the new policy component, click a row with the Add action type to display the page.
Figure 2 Audit Row Details for Add Event
For example, if a TACACS enforcement profile is added, the page displays detailed information about that profile. If a policy is created, the page displays information about the policy.
Modify EventsTo display additional details information about the change, including the previous values, the latest, updated values, and the differences between the two, click a row with the Modify action type.
Figure 3 shows the page for a .
Figure 3 Audit Row Details for Modify Event
When you view a modify event, the window contains the following three tabs:
Parameter | Description |
Old Data | Displays a summary of details about the original data values. The section shows a summary of the profile values. The section shows data about the original attributes and values. |
New Data | Displays a summary of details about the new data values. The section shows a summary of the profile values. The section shows data about the original attributes and values. |
Inline Difference | Displays information about what changed. The information is color-coded to indicate the following types of changes: Modified Added Deleted Moved up Moved down |
Remove To display details about attributes that were removed, click a row with the Remove action type.
