Device Fingerprints Dictionary

Device fingerprints are composed of information collected about a network device in order to uniquely identify the device on subsequent sessions. A device fingerprint can fully or partially identify individual users or devices even when cookies and other tracking data are turned off. The Device Fingerprints page shows a listing of all the device fingerprints recognized by the Profile module. These fingerprints are updated from the Aruba Policy Manager Updates Portal (see Software Updates for more information). Custom device fingerprints can be added and updated between Policy Manager servers.

If custom device fingerprints are configured, the custom rules are evaluated before the default rules are evaluated.

Viewing the Contents of a Device Fingerprints Dictionary

When Device Insight Integration is enabled, the Administration > Dictionaries > Device Fingerprints option is hidden because Device Insight functionality replaces the Policy Manager functions available through the Device Fingerprints option (for more information, see Device Insight Integration Page).

The Device Fingerprints page lists all the device fingerprints recognized by the Profiler module. These fingerprints are updated from the Software Updates page (see Software Updates).

To view the contents of the Device Fingerprints Dictionary:

1. Navigate to Administration > Dictionaries > Device Fingerprints.

The Device Fingerprints page opens.

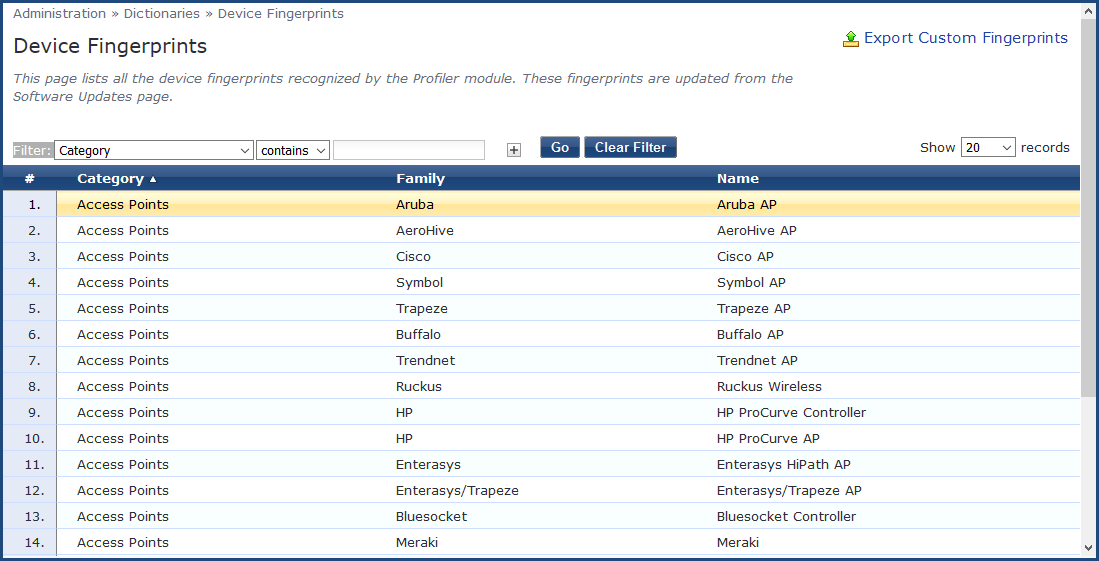

Figure 1  Device Fingerprints Page

2. To drill down and view additional details about the category, click on the line of interest in the Device Fingerprints list.

The Device Fingerprint Dictionary Attributes page opens.

Figure 2  Device Fingerprint Dictionary Attributes Page

Exporting Custom Fingerprints

Policy ManagerPolicy Manager allows you to export configuration and administration-related information from the current Policy Manager server to an XMLExtensible Markup Language. XML is a markup language that defines a set of rules for encoding documents in a format that is both human-readable and machine-readable. file. You can set this file to be password protected. You are not required to provide a new selection of rules when they are exported. All the associated rules for the Custom Created Fingerprints are exported.

To export custom fingerprints:

1. From the Device Fingerprints page, click Export Custom Fingerprints.

The Export to file dialog opens.

Figure 3  Export to File Dialog

2. Specify the Export to file parameters as described in Table 1:

Table 1: Export to File Dialog Parameters

Parameter	Action/Description
Export file with password protection	To export the file with password protection, choose Yes.
Secret Key Verify Secret	You can choose to encrypt the exported data with a key. This protects data such as shared secret from being visible in the exported file. To import it back, you specify the same key with which you exported the file. Enter the secret key. Then reenter the secret key.

3. Click Export.

The following figure shows Policy Manager an example of the exported custom fingerprints file:

Figure 4  Exported XML File
