HPE Aruba Networking Central On-Premises Deployment

HPE Aruba Networking Central On-Premises deployment can be done in two different ways:

Appliance—In this mode, customers deploy HPE Aruba Networking Central On-Premises on Aruba Central Appliance (R1Q05B) or Aruba Central Ready AirWave 8 Appliance (R1Q04B). For Gen 11 appliance mode deployment, it supports s4P01A appliance.

HPE Aruba Networking Central On-Premises on Bare Metal (non-appliance)—In this mode, customers deploy HPE Aruba Networking Central On-Premises on HPE servers as mentioned in the following tables:

HPE Aruba Networking Central On-Premises Deployment
HPE Aruba Networking Central On-Premises Deployment

Attention

While using HPE Aruba Networking Central On-Premises on bare metal mode, you should only use HPE OEM ProLiant DL360 Gen10 and Gen11 8SFF CTO Server platform along with the configurations mentioned in the tables below.

While using HPE DL360 servers, you can use a mix of Gen 10 and Gen 11 servers.

Important Notes

If you install HPE Aruba Networking Central On-Premises in non-appliance mode using HPE DL360 server, then you must set the following configuration on the server before proceeding with the installation:

Disable TPM Trusted Platform Module. TPM is an international standard for a secure cryptoprocessor, which is a dedicated microcontroller designed to secure hardware by integrating cryptographic keys into devices. in the ILO configuration
Set TPM visibility to false in the BIOS Basic Input/Output System (BIOS) program is used by a computer's microprocessor to start the system when powered on. It also manages the data flow between the operating system and other attached devices, for example, keyboard, hard disk, mouse, video adapter, etc. setting
To onboard an IAP websocket connection, you must upload any trusted CA Certificate Authority or Certification Authority. Entity in a public key infrastructure system that issues certificates to clients. A certificate signing request received by the CA is converted into a certificate when the CA adds a signature generated with a private key. See digital certificate. certificate to the HPE Aruba Networking Central On-Premises cluster.
To onboard a controller websocket connection for troubleshooting any issues, you must download root CA certificate from the HPE Aruba Networking Central On-Premises cluster and use the same certificate in the controller.

The following accessories are required to support HPE Aruba Networking Central On-Premises on both Bare Metal and Appliance mode for Gen 11:

Aruba 10Gb SFP The Small Form-factor Pluggable. SFP is a compact, hot-pluggable transceiver that is used for both telecommunication and data communications applications. + to SFP+ 1m Direct Attach Cable J9281D
Aruba 10Gb SFP+ to SFP+ 3m Direct Attach Cable J9283D
Aruba 10Gb SFP+ to SFP+ 7m Direct Attach Cable J9285D

Along with the DAC cables mentioned above, J9150D (Aruba 10G SFP+ LC SR 300m OM3 MMF Transceiver) is the supported SFP Transceiver.

The following table lists the only supported server specification that can be purchased from HPE to support HPE Aruba Networking Central On-Premises on Bare Metal mode for Gen 11:

Table 1: HPE OEM ProLiant DL360 Gen11 8SFF CTO Server Specifications
Quantity	Product Part Number	Description
1	P52499-B21	HPE DL360 Gen11 8SFF CTO Server
1	P52499-B21	HPE DL360 Gen11 8SFF CTO Server
2	P49599-B21	INT Xeon-G 6442Y CPU Central Processing Unit. A CPU is an electronic circuitry in a computer for processing instructions. for HPE
2	P49599-B21	Factory Integrated
16	P43328-B21	HPE 32GB 2Rx8 PC5-4800B-R Smart Kit
16	P43328-B21	Factory Integrated
1	P48895-B21	HPE DL360 G11 8SFF x1 U.3 TM BP Kit
1	P48895-B21	Factory integrated
5	P49049-B21	HPE 1.6TB SAS MU SFF BC MV SSD
5	P49049-B21	Factory Integrated
1	P48926-B21	HPE DL3X0 G11 1U DP/USB Universal Serial Bus. USB is a connection standard that offers a common interface for communication between the external devices and a computer. USB is the most common port used in the client devices. /ODD Blank Kit
1	P48926-B21	Factory Integrated
1	726536-B21	HPE 9.5mm SATA DVD-ROM Optical Drive
1	726536-B21	Factory Integrated
1	P51178-B21	BCM 5719 1Gb 4p BASE-T Adptr
1	P51178-B21	Factory Integrated
1	P01366-B21	HPE 96W Smart Stg Li-ion Batt 145mm Kit
1	P01366-B21	Factory Integrated
1	P48918-B21	HPE DL360 Gen11 Stg Cntrl Enable Cbl Kit
1	P48918-B21	Factory Integrated
1	P47781-B21	HPE MR416i-o Gen11 SPDM Storage Cntlr
1	P47781-B21	Factory Integrated
1	P10106-B21	INT E810 10/25GbE 2p SFP28 OCP3 Adptr
1	P10106-B21	Factory Integrated
1	P48908-B21	HPE DL3X0 Gen11 1U High Perf Fan Kit
1	P48908-B21	Factory Integrated
1	P38997-B21	HPE 1600W FS Plat Ht Plg LH Pwr Sply Kit
1	P38997-B21	Factory Integrated
1	BD505A	HPE iLO Integrated Lights-Out (iLO) by Hewlett-Packard Enterprise is a proprietary embedded server management technology providing out-of-band management facilities. Adv 1-svr Lic 3yr Support
1	BD505A	Factory Integrated
1	P48830-B21	HPE DL3XX Gen11 CPU2/OCP2 x8 Enable Kit
1	P48830-B21	Factory Integrated
1	P52416-B21	HPE DL360 Gen11 OROC TM Cbl Kit
1	P52416-B21	Factory Integrated
6	845970-B21	HPE QSFP28 to SFP28 Adapter
6	845970-B21	Factory Integrated
1	P26489-B21	HPE DL300 Gen10+ 1U CMA for Rail Kit
1	P26489-B21	Factory Integrated
1	P35876-B21	HPE CE Mark Removal FIO Enable Kit
2	P48905-B21	HPE DL360 Gen11 High Perf Heat Sink Kit
2	P48905-B21	Factory Integrated
1	P52341-B21	HPE DL3XX Gen11 Easy Install Rail 3 Kit
1	P52341-B21	Factory integrated

The following table lists the only supported server specification that can be purchased from HPE to support HPE Aruba Networking Central On-Premises on Bare Metal mode for Gen 10:

Table 2: HPE OEM ProLiant DL360 Gen10 8SFF CTO Server Specifications
Quantity	Product Part Number	Description
1	869121-B21	HPE OEM ProLiant DL360 Gen10 8SFF Configure-to-order Server
1	869121-B22	HPE OEM DL360 Gen10 8-SFF CTO Server
1	869121-B23	OEM LL DL360 Gen10 6138 Xeon-G FIO Kit
1	869121-B24	OEM LL DL360 Gen10 6138 Xeon-G Kit
1	869121-B25	Factory Integrated
16	869121-B26	HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
16	869121-B27	Factory Integrated
1	869121-B28	HPE DL360 Gen10 8SFF Display Port/USB/Optical Drive Blank Kit
1	869121-B29	Factory Integrated
4	869121-B30	HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD
4	869121-B31	Factory Integrated
1	726536-B21	HPE 9.5mm SATA DVD-ROM Optical Drive
1	726536-B21 0D1	Factory Integrated
1	727055-B21	HPE Ethernet Ethernet is a network protocol for data transmission over LAN. 10Gb 2-port SFP+ X710-DA2 Adapter
1	727055-B21 0D1	Factory Integrated
1	P01366-B21	HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
1	P01366-B21 0D1	Factory Integrated
1	804331-B21	HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller
1	804331-B21 0D1	Factory Integrated
1	865408-B21	HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
1	865408-B21 0D1	Factory Integrated
1	512485-B21	HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features
1	512485-B21 0D1	Factory Integrated
1	734811-B21	HPE 1U Cable Management Arm for Rail Kit
1	734811-B21 0D1	Factory Integrated
1	864279-B21	HPE Trusted Platform Module 2.0 Gen10 Option
1	864279-B21 0D1	Factory Integrated
	872211-B21	HPE OEM 1U Non-Brand Gen10 Bezel FIO Kit
1	873770-B21	HPE DL3XX Gen10 Rear Serial Cable and Enablement Kit
1	873770-B21 0D1	Factory Integrated
1	874543-B21	HPE 1U Gen10 SFF Easy Install Rail Kit
1	874543-B21 0D1	Factory Integrated
Total = 68

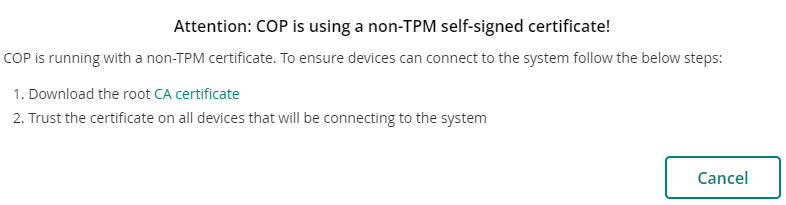

If a customer is using COP on Bare Metal mode, a pop-up is displayed when you login to the HPE Aruba Networking Central On-Premises setup, from where you can download the root certificate authority (CA) to connect to your network devices. When you click the link, a root_certificate.pem file is downloaded on your local system. This certificate should be uploaded to your respective devices for authentication.

If you click Cancel the pop-up is not displayed again in the same session, but if the customer logins again to HPE Aruba Networking Central On-Premises the pop-up will be displayed.

IMPORTANT CONSIDERATIONS

Ensure the below details are ready before setting up HPE Aruba Networking Central On-Premises. Ensure that the following are correct and reachable.

Any mistype or incorrect details in the Network Settings cannot be modified after the cluster setup. The only option is to perform Factory Reset and re-run HPE Aruba Networking Central On-Premises.

FQDN Fully Qualified Location Name. FQLN is a device location identifier in the format: APname.Floor.Building.Campus. , IP Address, Subnet Mask, Gateway, DNS Domain Name System. A DNS server functions as a phone book for the intranet and Internet users. It converts human-readable computer host names into IP addresses and IP addresses into host names. It stores several records for a domain name such as an address 'A' record, name server (NS), and mail exchanger (MX) records. The Address 'A' record is the most important record that is stored in a DNS server, because it provides the required IP address for a network peripheral or element. IP for each node in cluster
VIP Virtual IP (VIP) is an IP address that as the name suggests, does not communicate with any physical network interface. (Virtual IP for cluster), Subnet Mask, Gateway, and multiple FQDNs (FQDNs for VIP) for cluster.

The HPE Aruba Networking Central On-Premises appliance opens multiple ports for communication, so it is recommended that you host the HPE Aruba Networking Central On-Premises appliance behind a firewall.
In HPE Aruba Networking Central On-Premises deployment, the port 8888 is a dedicated inbound port which is used for HTTP Hypertext Transfer Protocol. The HTTP is an application protocol to transfer data over the web. The HTTP protocol defines how messages are formatted and transmitted, and the actions that the w servers and browsers should take in response to various commands. based firmware image download on CX and PVOS devices.

Multiple FQDNs

As a part of the HPE GreenLake updates, HPE Aruba Networking Central On-Premises now requires multiple FQDNs to be configured for HPE Aruba Networking Central On-Premises cluster.

The multiple FQDNs created must resolve to the same Cluster Virtual IP Address (VIP).
These multiple FQDNs should be resolvable by both primary and secondary DNS servers configured on HPE Aruba Networking Central On-Premises.

The new FQDNs should be in the format mentioned below:

cluster_fqdn
central-<cluster_fqdn>
apigw-<cluster_fqdn>
ccs-user-api-<cluster_fqdn>
sso-<cluster_fqdn>

The following table provides details of the multiple FQDNs and their consumer names that are configured for HPE Aruba Networking Central On-Premises cluster.

Table 3: Multiple FQDNs Example
FQDN	Consumer
cop-deployment.companyx.com	Central-UI User Interface. home page access from the browser
central-cop-deployment.companyx.com	Central-UI NMS Network Management System. NMS is a set of hardware and/or software tools that allow an IT professional to supervise the individual components of a network within a larger network management framework. page access from the browser
apigw-cop-deployment.companyx.com	Central NBAPI access from the customer application
ccs-user-api-cop-deployment.companyx.com	Central-UI API Application Programming Interface. Refers to a set of functions, procedures, protocols, and tools that enable users to build application software. access
sso-cop-deployment.companyx.com	Central-UI authentication page access

Additionally, the DNS servers must also resolve the public and private DNS namespaces required by the organization.

Server Hardware Details

HPE Aruba Networking Central On-Premises can be installed on an Aruba Central ready AirWave appliance and Aruba Central appliance. The server is an HPE ProLiant DL360 Gen10 server with 40 physical cores, 512 GB RAM Random Access Memory. , 4 TB disk space, and 10 Gbps Gigabits per second. minimum network interface speed.

Supported Ports

Configure the appropriate ports. The following table lists the supported ports:

Table 4: Domain Names and Ports for HPE Aruba Networking Central
Protocol and port	Domain Names and Purpose
Inbound Ports Traffic
TCP Transmission Control Protocol. TCP is a communication protocol that defines the standards for establishing and maintaining network connection for applications to exchange data. 443	To access and manage HPE Aruba Networking Central On-Premises.
	For HTTPS Hypertext Transfer Protocol Secure. HTTPS is a variant of the HTTP that adds a layer of security on the data in transit through a secure socket layer or transport layer security protocol connection. and web-socket between HPE Aruba Networking Central On-Premises and devices.
UDP User Datagram Protocol. UDP is a part of the TCP/IP family of protocols used for data transfer. UDP is typically used for streaming media. UDP is a stateless protocol, which means it does not acknowledge that the packets being sent have been received. 8211	To receive AMON Advanced Monitoring. AMON is used in Aruba WLAN deployments for improved network management, monitoring, and diagnostic capabilities. messages and view data for controllers in the HPE Aruba Networking Central On-Premises monitoring dashboard.
TCP 22	For management access through SSH Secure Shell. SSH is a network protocol that provides secure access to a remote device. and cluster setup.
	For CLI Command-Line Interface. A console interface with a command line shell that allows users to execute text input as commands and convert these commands to appropriate functions. between HPE Aruba Networking Central On-Premises and devices.
	To access and manage HPE Aruba Networking Central On-Premises.
TCP 80	For browser redirect from HTTP to HTTPS.
TCP 2379, 2380, 4433, 6433, and 10250	For communication between HPE Aruba Networking Central On-Premises nodes in a cluster.
TCP 4343	To access the setup-wizard installation. NOTE: The HPE Aruba Networking Central On-Premises setup-wizard is shut down and the port 4343 is closed after 2 hours when the COP setup is completed successfully. The time span of 2 hours is provided to the user to inspect the status of the HPE Aruba Networking Central On-Premises cluster setup.
TCP 22020	To allow remote console (RCS) access of device from HPE Aruba Networking Central On-Premises.
TCP 30633	To allow the devices to set up a connection with the OpenFlow OpenFlow is an open communications interface between control plane and the forwarding layers of a network. controller.
TCP 8888	For HTTP-based firmware image download for CX and PVOS switches.
DTLS Datagram Transport Layer Security is a communications protocol providing security to datagram-based applications by allowing them to communicate in a way designed to prevent tampering, message forgery or eavesdropping. 9009	To receive AMON on secure port.
Outbound Ports Traffic
TCP 25, 465, or 587	Dependent on the SMTP configuration for alerts, reports, and HPE Aruba Networking Central On-Premises account registration.
UDP 123	To access ntp.ubuntu.com. NOTE: This is default destination. Users can reconfigure this port.
UDP 161, 162	For SNMP Simple Network Management Protocol. SNMP is a TCP/IP standard protocol for managing devices on IP networks. Devices that typically support SNMP include routers, switches, servers, workstations, printers, modem racks, and more. It is used mostly in network management systems to monitor network-attached devices for conditions that warrant administrative attention. and traps.
UDP 514	For Syslog.
TCP 4343	For device bootstrap to controllers.
TCP 22	To access nexus2.airwave.com to support connection.
TCP 443	To access and allow HPE Aruba Networking Central On-Premises to check firmware versions for automatic upgrades. coreupdate.central.arubanetworks.com coreupdate-prod.central.arubanetworks.com geoip.maxmind.com
	To access images from the quay.io registry. NOTE: HPE Aruba Networking Central On-Premises downloads packages from private allow listed repositories and uses signed packages for images. NOTE: Quay.io traffic can originate from multiple IP ranges, refer to the article to allow traffic from Quay nodes.
	To access maps.googleapis.com to translate address.
	To access api.mapbox.com to view maps from user's browser.
	To access d1c50u1zbkqmph.cloudfront.net for CDN A Content Delivery Network (CDN) is a group of servers that are distributed geographically and speed up web content delivery by bringing it closer to the user's location. from user's browser.
	To access https://enterpriselicense.hpe.com for licensing.
	To access help.arubanetworks.com for documentation from user's browser.

The outbound traffic can be initiated from any node of HPE Aruba Networking Central On-Premises cluster. Hence, the outbound traffic from all nodes of HPE Aruba Networking Central On-Premises cluster should be allow-listed in the firewall.

The default protocol for sending Syslog messages is UDP with a default port of 514. However, the user can choose any port for communication.
