Viewing Devices in the Summary View

The Summary view is a card-based layout that provides you with a graphical representation of the site-level device information.

To navigate to the Summary view, complete the following steps:

1. In the HPE Aruba Networking Central landing page, select a site from the Sites menu.

   Alternatively, you can click the expand icon on the Sites menu to search for a site from the list.

   The site dashboard is displayed with the network and connectivity information for the site.

2. In the site context, click Network.

   The List view is displayed on the site dashboard. See Viewing Devices in the List View

3. Click the summary icon.

   The Summary view is displayed.

The Summary view displays the following cards:

• LAN

• Top Access Points

• Services

• Radios

• WLANs

LAN

The LAN card displays the count of devices at a site in good, fair, and poor health using icons. The count is grouped based on the device type and device health.

Figure 1: LAN Card

Listed below are the device health icons displayed in the LAN card.

Table 1: Device Health Icons

Icon	Description
	The devices are in good health based on the device metrics.
	The devices are in fair health based on the device metrics. For example, an AP is in fair health when one or more radio metrics of the AP such as the channel utilization, noise floor, and channel quality is fair.
	The devices are either offline or in poor health based on the device metrics. For example, an AP is in poor health when it is either offline, or when one or more AP metrics such as the CPU, memory, radio channel utilization, radio noise floor, and radio channel quality is poor.

Top Access Points

The Top Access Points card displays the top 5 access points based on insights such as AP wired uplink usage, wireless client usage, and the total usage (in bytes) for a given site. The APs are listed based on data for the last 3 hours. By default, the temporal filter is set to Last 3 hours.

The radio bands (such as 2.4 GHz, 5 GHz, and 6 GHz) and wired/wireless usage is displayed through distinct colors on the card. Clicking on the AP name takes you to the respective AP dashboard.

Figure 2: Top Access Points Card

In the drop-down of the temporal filter, you can change the timescope by selecting one of the following options:

• Last 3 hours

• Last 1 day

• Last 7 days

• Last 30 days

Changing the timescope refreshes the top access points with the most usage in the specified period.

Services

The Services card displays the health, service type, and IP address of the available network services at a site.

Figure 3: Services Card

Listed below are the service health icons displayed in the Services card.

Table 2: Service Health Icons

Icon	Description
	The service is in good health.
	The service is in fair health based on certain service parameters.
	The service is either offline or in poor health based on certain service parameters.

To view all the services, click the expand icon in the Services card. The following image shows the expanded view of the Services card.

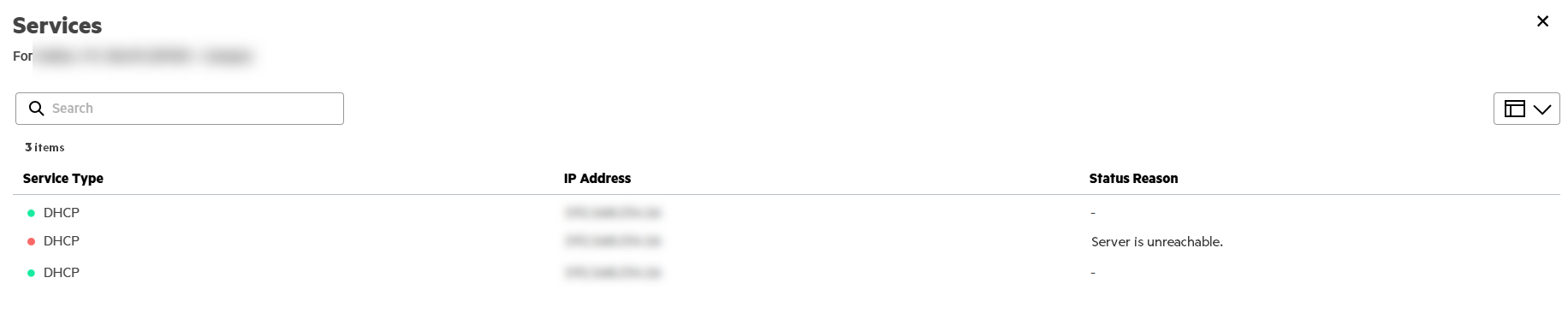

Figure 4: Services Card—Expanded View

To select the fields to display in the expanded view, click the Customize Columns icon. The following table describes the fields in the Services card.

Table 3: Fields in the Services Card

Field	Description
Service Type	Displays the service health icon and the service type.
IP Address	Displays the IP address where the service is hosted.
Status Reason	Displays the reason for the device health status. A reason is not displayed when the device is in good health.

Radios

The Radios card displays the following information:

• The number of radios by band—The total number of radios available in the site. It consists of a donut chart which represents the distribution of radios by band (2.4 GHz, 5 GHz, and 6 GHz). Hovering over a section of the donut chart displays the number of radios in that frequency band in a tooltip.

• The number of radio channel changes by reason—The total number of changes made to the radio channel. It consists of a donut chart which represents the distribution of reasons why the radio channel was modified. Hovering over a section of the donut chart displays the number of times a radio channel change took place for a specific reason in a tooltip.

• The number of radio transmit power changes by reason—The total number of changes made to the radio transmit power. It consists of a donut chart which represents the distribution of reasons why the radio's transmit power was modified. Hovering over a section of the donut chart displays the number of times a radio's transmit power change took place for a specific reason in a tooltip.

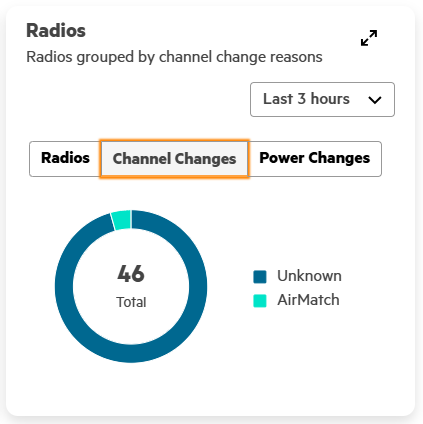

Figure 5: Radios Card

By default, the temporal filter is set to Last 3 hours.

In the drop-down of the temporal filter, you can change the timescope by selecting one of the following options:

• Last 3 hours

• Last 1 day

• Last 7 days

• Last 30 days

Changing the time period refreshes the donut chart for the channel changes and the power changes in the specified period.

Expanded Radios Card

To view more information about the radio distribution, click the total number of radios at the center of the donut chart, or click the expand icon.

On the expanded radios card page, by default, you can see the Radio, Channel Changes, and Power Changes tabs in the list view. To switch to the summary view, click the summary icon to see the Channel and Power Distribution tabs.

Expanded Radios Card - List View

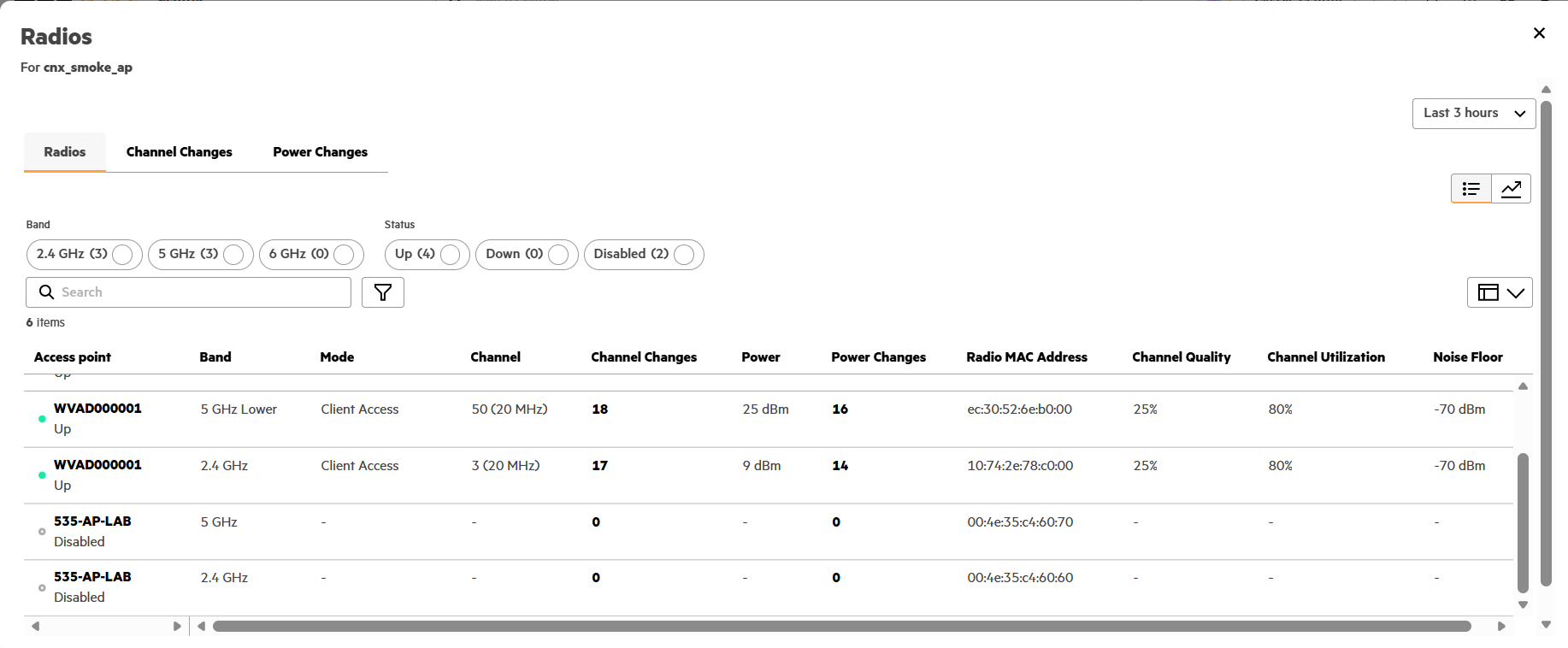

Figure 6: Expanded Radios Card - List View

Based on the selected time range, the data displayed in the table refreshes.

The following table describes the fields in the expanded Radios card.

Table 4: Fields in the Expanded Radios Card (Radio Tab)

Field	Description
Access Point	Displays the name of the access point.
Band	Displays the frequency band of the radio (2.4 GHz, 5 GHz, and 6 GHz).
Mode	Displays the mode of the radio (client access, tri-radio, and so on).
Channel	Displays the channel assigned for the radio.
Channel Changes	Displays the number of channel changes that has occurred in the radio. You can find more information about each power change by clicking the Channel Changes tab at the top of the pop-up.
Power	Displays transmit power of the radios measured in decibel-milliwatts.
Power Changes	Displays the number of power changes that has occurred in the radio. You can find more information about each power change by clicking the Power Changes tab at the top of the pop-up.
Radio MAC Address	Displays the MAC address of the radios connected to the AP.
Channel Quality	Displays the channel quality of the channel assigned for the radio.
Channel Utilization	Displays the channel utilization of the AP for the selected radio frequency.
Clients	Displays the number of associated clients.
Noise Floor	Displays the noise at the radio receivers of the AP radio.
Transmitting	Displays the percentage of data transmitted by the radio.
Receiving	Displays the percentage of data received by the radio.
Non-WiFi Interference	Displays the percentage of interference for the radio, from non-WiFi devices, for the corresponding radio frequency.
Retries	Displays the percentage of retries for the radio band on the AP.
Drops	Displays the percentage of drops for the radio band on the AP.

Table 5: Fields in the Expanded Radios Card (Channel Changes tab)

Field	Description
Access Point	Displays the name of the access point.
Site	Displays the site where the access point is assigned.
Event time	Displays the timestamp of the channel change
Band	Displays the frequency band of the radio (2.4 GHz, 5 GHz, and 6 GHz).
Category	Displays the reason category for the channel change.
From Channel	Displays the channel assigned to the AP before the channel change.
To Channel	Displays the channel assigned to the AP after the channel change.
Transmit Power	Displays transmit power of the radios measured in decibel-milliwatts.
Reason	Displays the reason for the channel change.

Table 6: Fields in the Expanded Radios Card (Power Changes tab)

Field	Description
Access Point	Displays the name of the access point.
Site	Displays the site where the access point is assigned.
Event time	Displays the timestamp of the channel change
Band	Displays the frequency band of the radio (2.4 GHz, 5 GHz, and 6 GHz).
Category	Displays the reason category for the power change.
From Power	Displays the power assigned to the AP before the power change.
To Power	Displays the power assigned to the AP after the power change.
Channel	Displays the channel assigned to the AP.
Reason	Displays the reason for the power change.

Expanded Radios Card - Summary View

Channel Distribution

This chart displays information on the frequency at which each radio channel operates.

Figure 7: Expanded Radios Card - Summary View

You can quickly filter the charts for each Wi-Fi Band; 6 GHz, 5 GHz, or 2.4 GHz by selecting an option under Band.

When you hover over a colored cell, you can see the radio count and channel number.

Power Distribution

This chart displays the power distributed across each radio. Hovering over the bar displays the configured power and the number of radios configured for each band at that time.

Figure 8: Expanded Radios Card - Summary View - Power Distribution Chart

Filtering Devices in the Expanded Radios Card View

To filter devices, you can either use the search bar or the quick filter. Type the keyword in the search bar to find your devices, or use the quick filter to filter devices as per the band (2.4 GHz, 5 GHz, and 6 GHz), status (Up, Down, and Disabled), or any combination of the options.

Figure 9: Expanded Radios Card Quick Filters and Search Bar

Additionally, to search for devices using advanced filters, access the Filters pop-up window by clicking the filter icon, select the filter criteria with respect to Health, Mode, and Bandwidth and then click Apply.

Figure 10: Filters Pop-Up Window

For more information on customizing columns and exporting data, see Table Utilities.

WLANs

The WLANs card lists all configured wireless networks (SSIDs) for all AP devices, indicating whether each SSID is enabled (active) or disabled (inactive). It also indicates the status of the WLANs and the security levels configured for different radio access modes.

Figure 11: WLANs Card

To view additional details, click the expand icon.

Figure 12: WLANs Card Expanded View

The following table lists the WLANs card parameters:

Table 5: WLANs Card Information

Parameter	Description
Name	Displays the name of the WLAN SSID and indicates the WLAN status as one of the following: —Enabled —Disabled
Security Level	Indicates the security level configured for the WLAN. For example, Open, Personal, or Enterprise.
Band	Displays the band on which the WLAN is broadcast.
VLAN	Displays the VLAN assigned to the WLAN.

You can perform the following actions in the expanded WLANs card:

• View the WLAN status and related details for different access mode radios; click 2.4 GHz, 5 GHz, or 6 GHz checkboxes.

• Click the WLAN name to open the respective WLAN Details page. You can view the Throughput graph with WLAN properties such as status, security level, security, band, and VLAN configuration details.

  Figure 13: WLAN Details page



  The throughput graphical data gets refreshed based on the time range that you select in the temporal filter. If the selected time range is 3 hours or 1 day, the throughput data aggregation is for 5 minutes. But for time ranges greater than one day, the data aggregation is for three hours.

• Customize the columns in the list; see Customizing List.

• Export the table data in CSV format; click Table Menu > Export
